Aluminum Solar Ground Mounting System

Aluminum Solar Ground Mounting System

Aluminum Solar Ground Mounting System is highly anti-corrosion and the most aesthetic structurefor ground mount installations.

Uilized AL6005-T5 material, the supporting footing is delivered with highest pre-assembly tounfold at site

Ground-mounted solar panels are safer to install and they are simpler to maintain

It can use ground screw or concrete foundations, and achieve variable inclination and height makes plant design flexible.

Products details

 Aluminum Solar Ground Mounting System

Ground-mounted solar panels are more productive, which means you can pay for your investment faster and improve your economics. Ground-mounted solar panels can help you save even more on your electricity bills and achieve higher yields because they can be optimally positioned based on the local sunlight. Maintenance and repairs are also simpler because solar panels and other system components are easily accessible.



Symmetrical Design of Tilt-in-Nut and Rail Channel

No direction limitation for the nut and rail channel, improving the installation efficiency.

Pre-assembled Components Save Onsite Installation Time

Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.



Flexibility and Adjustability

The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.



No Front Post Design

Saving material cost without front post design, suitable for low ground clearance projects.



Base Foundation

Ground screw or cement pier



Technical Data

Install Site Open field area
Max Wind Speed ≤60m/s
Snow Load ≤1.4KN/M2
Tilt Angle 0-45 degree
Applicable Module Framed or frameless
Module Orientation Landscape, portrait
Standards AS/NZS 1170, ASCE 7-10, JIS2017
Material AL6005-T5, SUS304
Anti-corrosive Anodized
Color Silver, Black
Warranty 12 years



Why Optimum Sun

Top quality with competitive price---one of the biggest aluminum solar mounting manufacturer with integrated production in Xiamen.

Full anodize for all components---offering 12 year warranty and 25 year life time.

Excellent design ability---over 20 structure engineers, the chief engineer has 10 years' experience of structure engineering for aluminum solar mounting systems.

Components are highly pre-assembled at the factory, saving you a lot of time and cost.

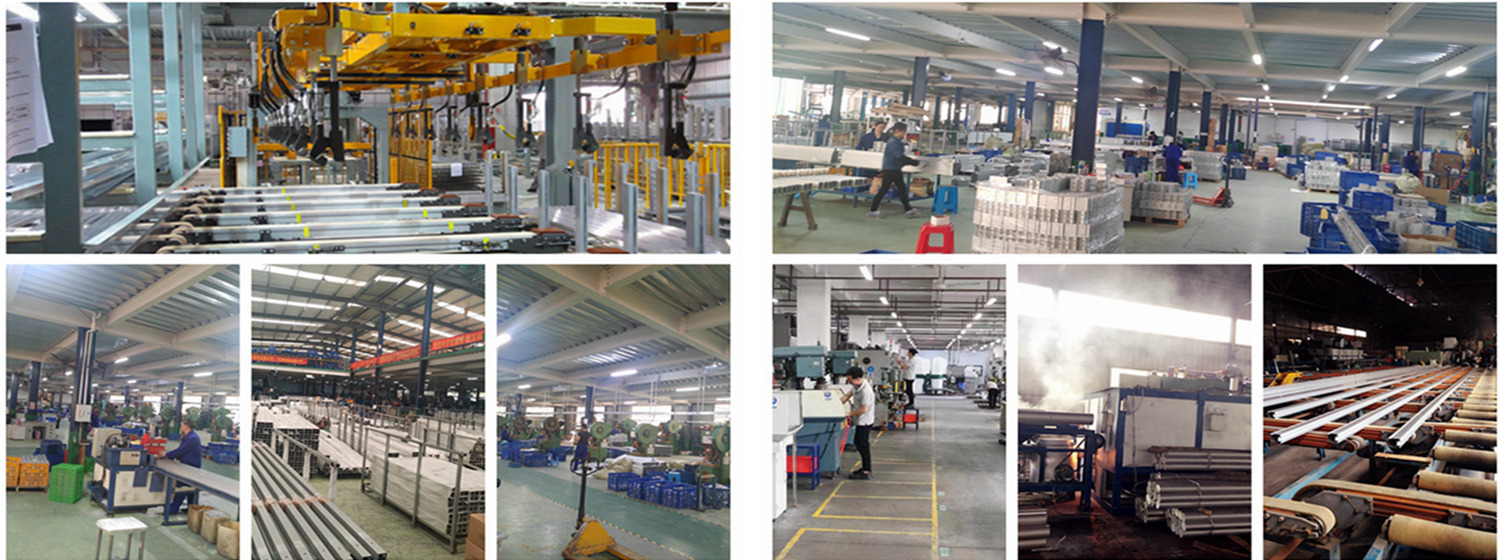

Complete production line
