DC48V 100% Solar Air Conditioner

DC48V 100% Solar Air Conditioner

48V Wall Split DC Solar Powered Air Conditioner with full DC 3D control(adopt world well-known DC compressor, DC indoor fan motor, DC outdoor fan motor), reliable running and high efficiency. easy installation, direct PV 48V powered,no conversion process

DC48V air conditioners can substantially reduce power supply/generation costs and battery requirements. An all-DC system means you get the advantage of extreme high efficiency without the need for inverters. The 48V air conditioner is designed to conserve power, and operate reliably for many years without maintenance.

Products details

48V Wall Split DC Solar Powered Air Conditioner （Cooling&Heating）

48V Wall Split DC Solar Powered Air Conditioner with full DC 3D control(adopt world well-known DC compressor, DC indoor fan motor, DC outdoor fan motor), reliable running and high efficiency. easy installation, direct PV 48V powered,no conversion process. All climate and power supply available.



QUESTION: What is your main advantage compared to your competitors?



1.    We are specialized in air conditioner manufacturing for 10 years.

2.    We provide full range from 9000btu to 24000btu

3.    Very competitive price

4.    Adopt inverter technology, more efficiency.

5.    Toshiba compressor, Panasonic motor.

6.    Complete package solution available.

7.    Both off grid and hybrid mode available.

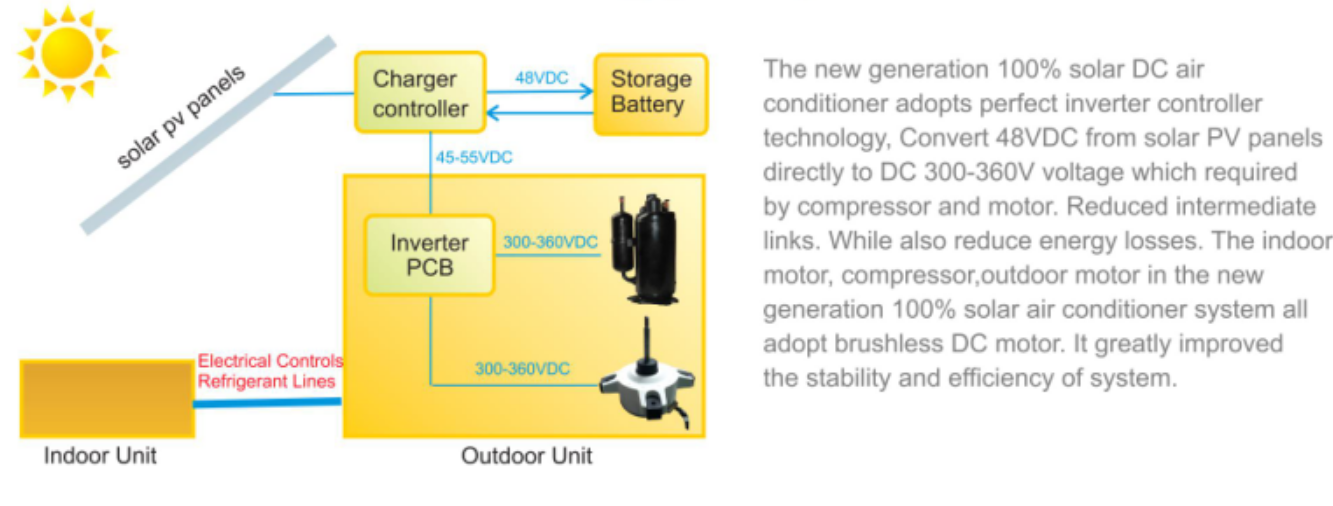

Working principle of DC48V 100%  solar air conditioner



Technical Data Parameters of DC48V 100% solar air conditioner



DC 48V Solar Air Conditioner
Model KFR-26GW/DCBP KFR-35GW/DCBP KFR-50GW/DCBP KFR-70GW/DCBP
Power supply Ph-V-Hz DC48V DC48V DC48V DC48V
Cooling Capacity                      Btu/h 9000 12000 18000 24000
Input       W 475 635 888 1310
Rated current    A 9.89 13.23 18.5 27.29
Heating Capacity                      Btu/h 9500 13000 19000 25000
Input         W 462 620 885 1285
Rated current    A 9.63 12.92 18.43 26.78
Energy Efficiency Class W/W A+++ A+++ A+++ A++
Moisture Removal             L/h 1.0 1.3 1.7 2.5
Starting current                A 0.25 0.3 0.5 0.6
Indoor air flow (Hi/Mi/Lo) m3/h 600/450/330 600/450/330 950/750/600 950/750/600
Indoor noise level (Hi/Mi/Lo) dB(A) ＜40/33/28 ＜40/33/28 ≤45/40/35 ≤45/40/35
Indoor unit Dimension(W*D*H) mm 795*285*215 795*285*215 1090*330*230 1090*330*230
Packing (W*D*H) mm 905*370*283 905*370*283 1145*375*305 1145*375*305
Net/Gross weight   Kg 11.2/14.8 11.2/14.8 16.5/19 16.5/19
Outdoor noise level         dB(A) ＜48 ＜50 ≤56 ≤56
Outdoor unit Dimension(W*D*H) mm 760*255*525 760*255*525 865*310*710 865*310*710
Packing(W*D*H) mm 890*360*590 890*360*590 1025*395*790 1025*395*790
Net/Gross weight  Kg 33/39 35/40 53/58 56/61
Operation temp               ℃ 16℃~31℃ 16℃~31℃ 16℃~31℃ 16℃~31℃
Ambient temp (cooling/heating) ℃ 18-50/-15-34 18-50/-15-34 18-50/-15-34 18-50/-15-34
Application area             m2 10-20 15-25 25-40 30-45
Qty’per 20’ /40’ /40'HQ        100/196/242 100/196/242 62/122/150 62/122/150

Components of DC48V solar air conditioner

Solar Controller:  48V mppt or PWM controller

Battery: GEL battery or Lithium battery

Solar Bracket :  Roof solar mounting system or Ground solar mounting system

Solar Cable:  4mm2 or 6mm2 with MC4 connector



How to buy DC48V 100% solar air conditioner

1. Advis us what BTU of solar air conditioner you need or the cooling home size

2.  Working time of solar air conditioner

3. Where do you install solar panel on roof or on ground



Why Chose Optimum Sun

1. Quality Assurance-We can control the whole solar air conditioner quality is good, including solar panel, cable, solar bracket and air conditioner

2. Solution Assurance-Professioanl engineer team will base on sunlight, working hrs to design the whole system which can moreeconomicalto saving cost

3. Flexibility Design- With our own factory can base on customer requirement to design different bracket, so solar panel can be installed on flat roof, pitch roof, ground or balcony

4. Order - Any order we can accept and also make OEM (customer brand )



Complete production line
